Product Overview
| Feature | Specification |
| Standard | UL 3573 |
| Rated Voltage | 10,000V AC/DC (High-Voltage Rated) |
| Temperature Range | -60°C to +200°C (-76°F to +392°F) |
| Conductor Type | Tinned Copper or Nickel-plated Copper |
| Primary Insulation | Silicone Rubber (High Flexibility) |
| Reinforcement Layer | Fiberglass Braiding |
| Outer Jacket/Covering | Silicone Rubber |
| Available Colors | White, Blue, Red, Black, Brown, Yellow, Green |
| Applications | Ignition leads for gas stoves, fuel oil burners, and high-voltage electronic ignition systems. |
Technical Parameter Table
| AWG (Gauge) | Conductor Construction (Number x Diameter in mm) | Conductor Diameter (mm) | Insulation and Covering Thickness (mm) | Finished Outside Diameter (mm) | Maximum Conductor Resistance at 20°C (68°F) (Ohm/km) |
| 22 | 7 x 0.25 | 0.75 | 1.0 | 3.3 | 59.4 |
| 20 | 7 x 0.31 | 0.95 | 1.0 | 3.5 | 36.7 |
| 18 | 7 x 0.40 | 1.19 | 1.0 | 3.7 | 23.2 |
| 16 | 7 x 0.50 | 1.53 | 1.0 | 4.1 | 14.6 |
| 14 | 41 / 0.25 | 1.83 | 1.0 | 4.4 | 8.96 |
| 12 | 65 / 0.25 | 2.48 | 1.0 | 5.0 | 5.45 |
Professional Industry Features
-

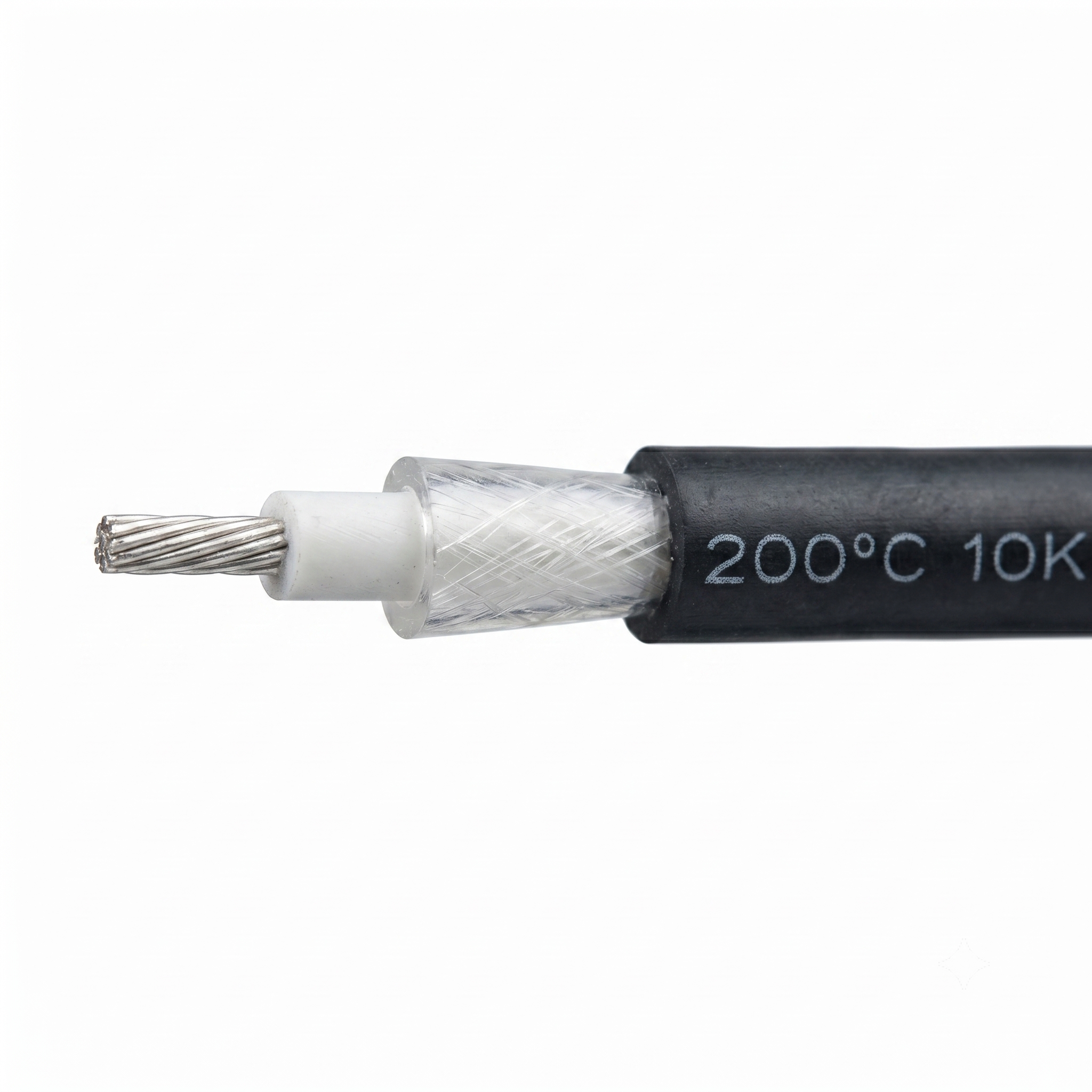

Triple-Layer Insulation System: This cable features a specialized composite construction. The inner silicone rubber provides high dielectric strength, while the middle fiberglass braid acts as a mechanical reinforcement. The outer silicone jacket ensures a gas-tight seal and protection against moisture.
-
10,000V High-Voltage Reliability: Specifically engineered as high-tension leads for ignition modules. The reinforced wall prevents dielectric breakdown even under consistent high-voltage pulses.
-
Extreme Thermal Stability: Designed to maintain mechanical flexibility and electrical integrity across a wide thermal spectrum, from deep cryogenic environments at -60°C (-76°F) to constant high-heat exposure at +200°C (392°F).
-
Advanced Conductor Protection: By using Tinned Copper or Nickel-plated Copper, the conductor remains highly resistant to oxidation and corrosion, ensuring long-term reliability in humid or high-temperature kitchen and industrial environments.
-
Optimized for Precision Ignition: The fiberglass braiding layer adds significant tensile strength and cut-through resistance, protecting the wire from damage during routing through tight appliance chassis.
