Product Overview
| Feature | Specification |

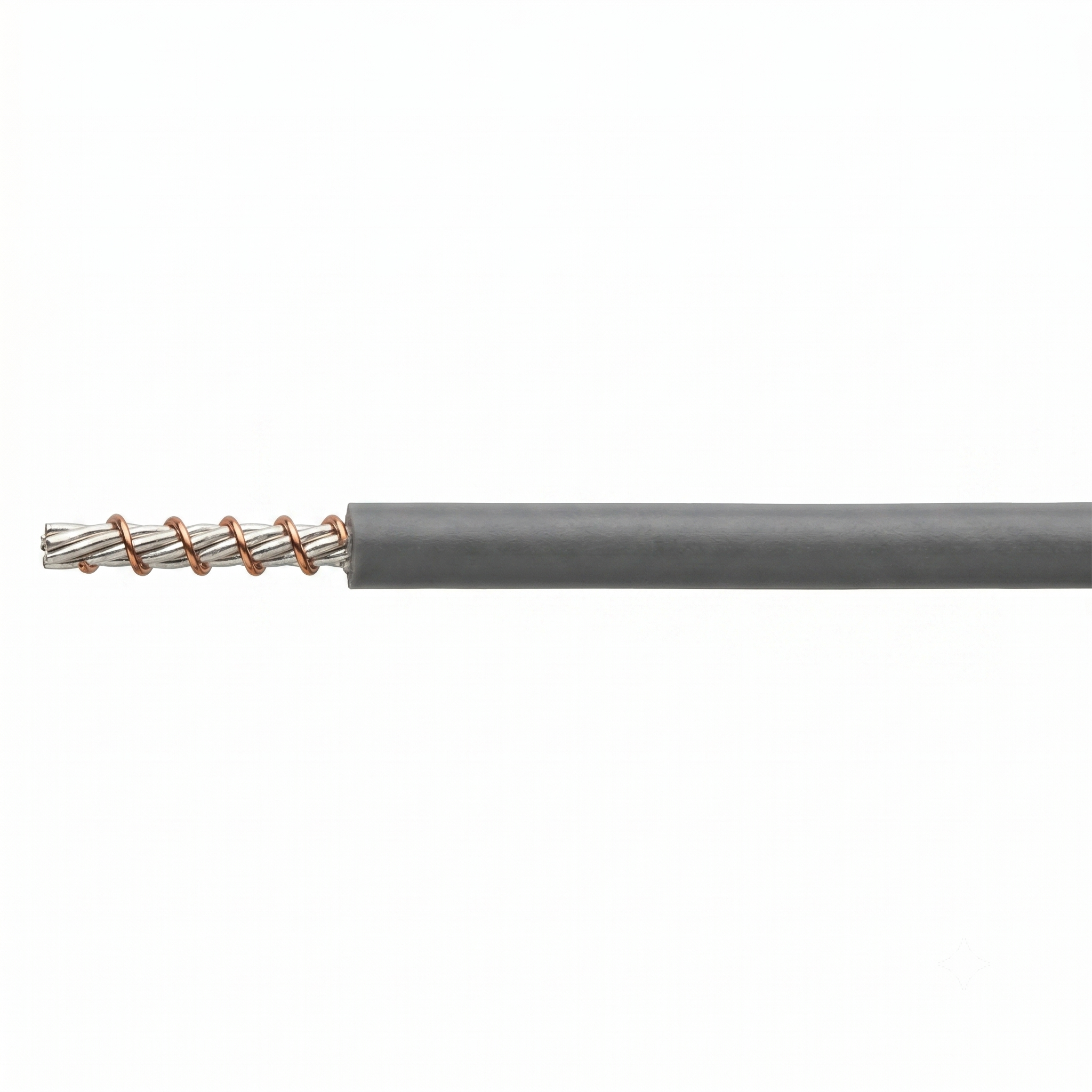

| Product Type | Silicone Rubber Heating and Resistance Wire |
| Nominal Voltage | 300 Volts / 600 Volts Alternating Current |
| Temperature Range | -60 degrees Celsius to +200 degrees Celsius (-76 degrees Fahrenheit to +392 degrees Fahrenheit) |
| Conductor Material | High-Resistance Alloy Wire (Resistance Element) |
| Insulation Material | High-Grade Silicone Rubber |
| Color Options | Full Color Spectrum (Customizable upon request) |
| Performance Features | Rapid thermal response, uniform temperature distribution, and high thermal conversion efficiency. |
| Resistance Range | Customizable from 1 Ohm per meter to 1000 Ohm per meter based on specific requirements. |
Supported Underwriters Laboratories (UL) Standards & Models
This professional heating wire series complies with several Underwriters Laboratories (UL) safety standards specifically designed for heating applications:
-
UL 3130
-
UL 3219
-
UL 3222
-
UL 3223
-
UL 3323
-
UL 3342
-
UL 3350
-
UL 3589
-
UL 3590
Typical Applications
-
Household Appliances: Specialized for refrigerator and air conditioner defrosting systems, thermal insulation for rice cookers, high-safety electric blankets, and ergonomically heated seat cushions.
-
Health and Wellness: Internal heating elements for professional electric massage chairs, medical beauty containers, and therapeutic heated waist belts.
-
Personal Care and Apparel: Lightweight heating solutions for battery-operated heated clothing, heated footwear/insoles, and temperature-controlled foot massage tubs.
-
Industrial and Automotive Systems: Robust protection for pipeline and storage tank insulation (anti-freezing solutions), and high-reliability car window heating/defrosting systems.
Professional Industry Advantages
-
Superior Thermal Endurance: The silicone rubber insulation provides long-term stability in extreme environments, maintaining flexibility and dielectric integrity from -60 degrees Celsius (-76 degrees Fahrenheit) up to constant heat of +200 degrees Celsius (+392 degrees Fahrenheit).
-
Precise Linear Resistance: Our advanced winding technology ensures consistent Ohm per meter values, preventing hot spots and ensuring the longevity of the heating element.
-
Chemical and Moisture Resistance: Naturally resistant to moisture, ozone, and common household chemicals, making it ideal for appliance environments where humidity is a factor.
-
Exceptional Pliability: The soft silicone profile allows for easy installation in tight spaces or when wrapped around curved surfaces like pipes and tanks.
