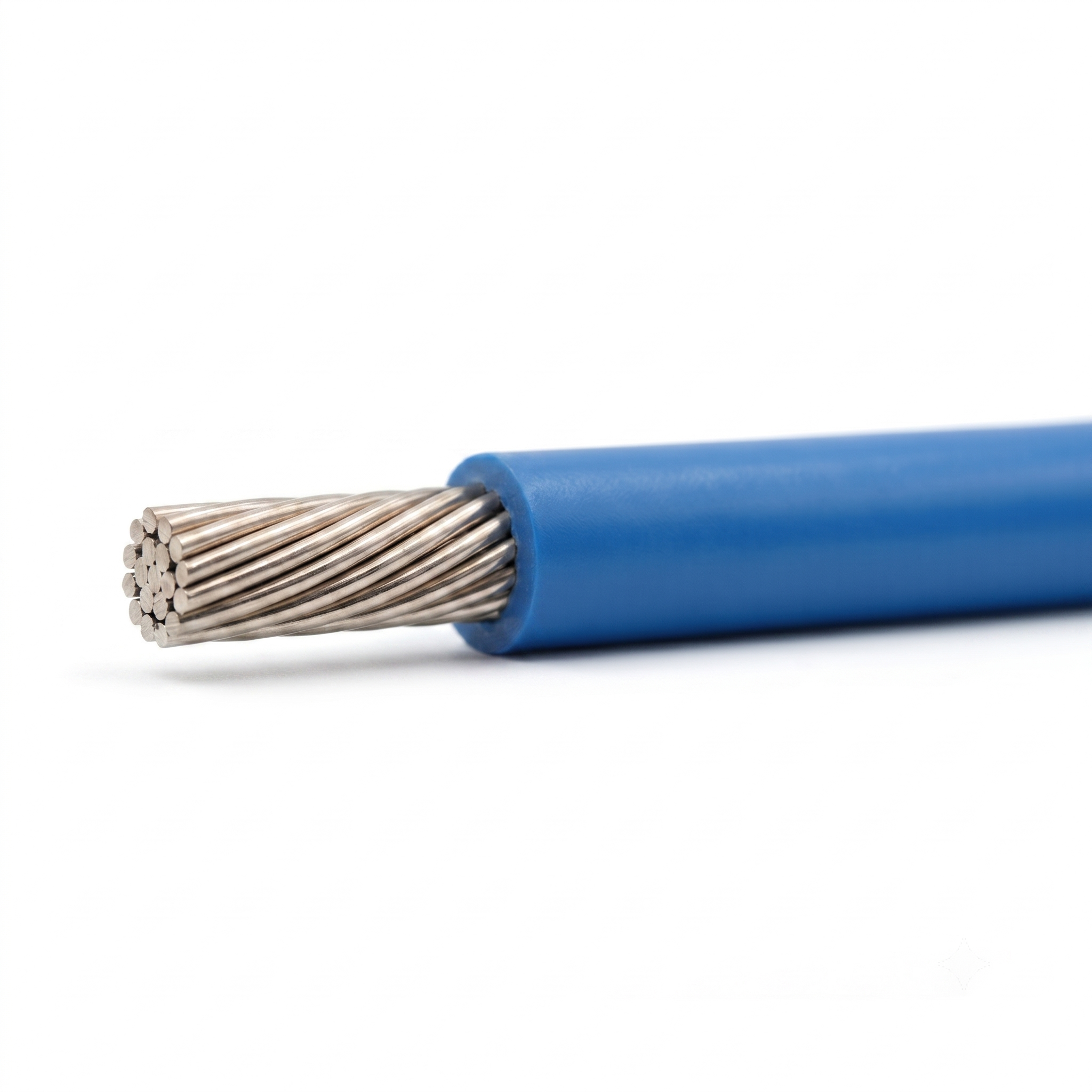

Product Overview

Feature	Specification
Standard	UL 1659
Insulation Material	PTFE (Polytetrafluoroethylene)
Rated Voltage	600V
Temperature Range	-100°C to +250°C (-148°F to +482°F)
Conductor Type	Nickel-plated Copper (NPC), Silver-plated Copper (SPC), or Pure Nickel (Ni)
Available Colors	White, Red, Green, Orange, Black
Applications	High-performance internal wiring for industrial ovens, aerospace electronics, and heat-sensing equipment.

Technical Parameter Table

AWG (Gauge)	Conductor Construction (No. / mm)	Conductor Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (O.D.) (mm)	Max. Conductor Resistance @ 20°C (68°F) (Ohm/km)
26	7 / 0.16 or 19 / 0.10	0.48 / 0.50	0.51	1.50	150
24	7 / 0.20 or 19 / 0.12	0.61 / 0.60	0.51	1.63 / 1.62	94.2
22	7 / 0.25 or 19 / 0.15	0.75 / 0.75	0.51	1.62 / 1.77	59.4
20	7 / 0.32 or 19 / 0.19	0.96 / 0.96	0.51	2.00 / 1.98	36.7
18	7 / 0.40 or 19 / 0.23	1.20 / 1.15	0.51	2.22 / 2.20	23.2
16	7 / 0.50 or 19 / 0.30	1.50 / 1.50	0.51	2.52	14.6
14	19 / 0.37	1.86	0.51	2.89	8.96
12	19 / 0.47	2.35	0.51	3.37	5.64
10	37 / 0.43	3.02	0.51	4.04	3.546

Exceptional Thermal Endurance: Specifically designed to withstand continuous exposure to temperatures up to +250°C (+482°F) without cracking or electrical breakdown.
Superior Dielectric Strength: PTFE insulation provides high insulation resistance and low dielectric constant, ensuring minimal signal loss and maximum safety in high-density systems.
Universal Chemical Resistance: The hook-up wire is virtually inert to all known acids, alkalis, oils, and industrial solvents, making it suitable for harsh chemical processing environments.
High-End Conductor Options: Available with Nickel-plated Copper (NPC) for maximum oxidation resistance or Silver-plated Copper (SPC) for superior electrical conductivity.
Non-Flammable & Non-Aging: Inherently flame retardant (VW-1 rated) and resistant to moisture and ultraviolet (UV) aging, extending the service life of critical equipment.
