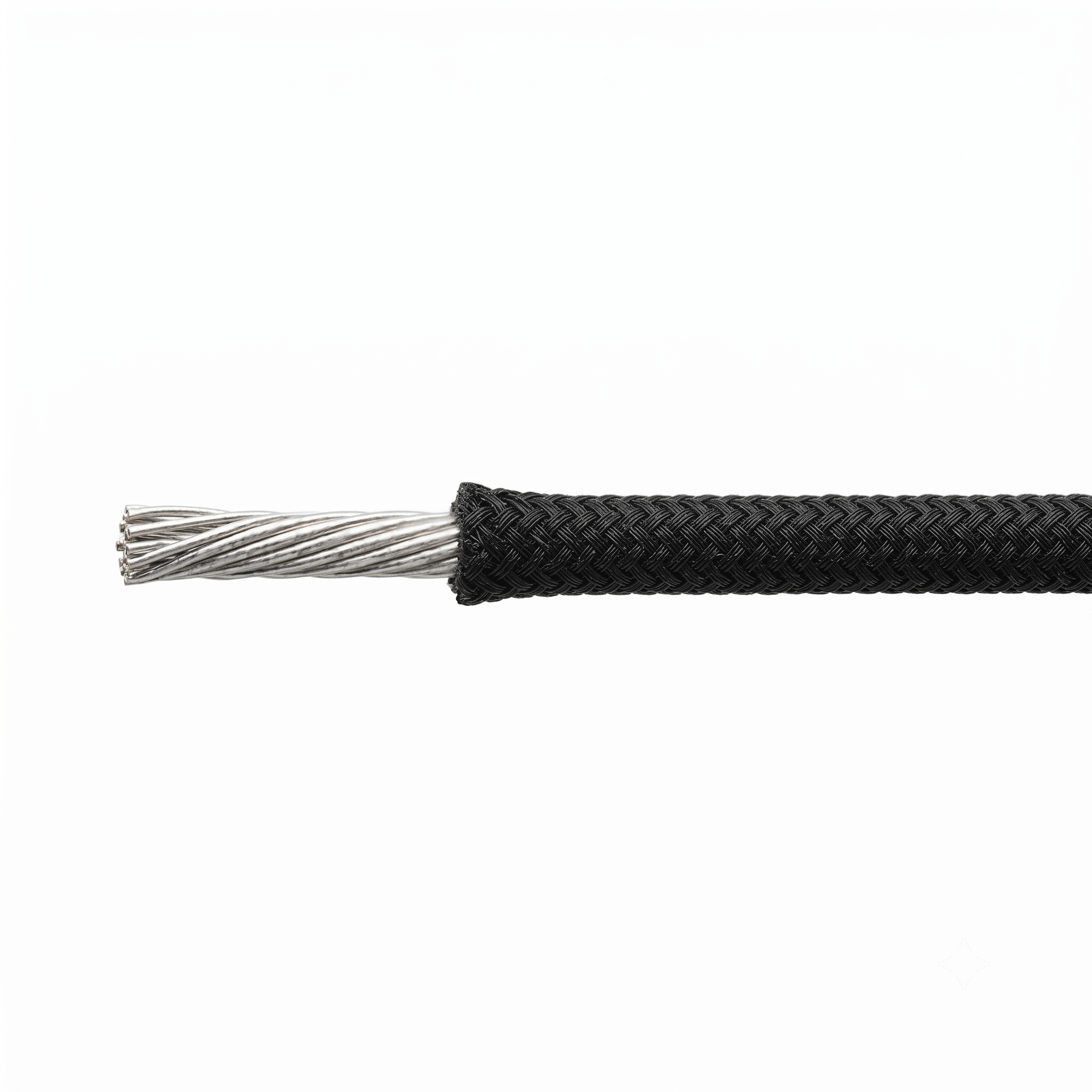

Product Overview
| Feature | Specification |
| Standard | UL 10935 |
| Insulation Material | ETFE (Ethylene Tetrafluoroethylene) |
| Covering/Jacket | Polyester Fiber Braiding |
| Rated Voltage | 600V |
| Temperature Range | -60°C to +150°C (-76°F to +302°F) |
| Conductor Type | Tinned Copper or Nickel-plated Copper |
| Available Colors | White, Blue, Red, Black, Brown, Yellow, Green |
| Applications | Internal wiring for household appliances and various electronic equipment requiring extra mechanical protection. |
Technical Parameter Table
| American Wire Gauge (AWG) | Conductor Construction (Number x Diameter in mm) | Conductor Diameter (mm) | Insulation Thickness (mm) | Finished Outside Diameter (mm) | Covering Thickness (mm) | Maximum Conductor Resistance @ 20°C (68°F) (Ohm/km) |
| 24 | 7 x 0.20 / 19 x 0.12 | 0.6 | 0.15 | 0.95 | 0.2 | 94.2 |
| 22 | 7 x 0.25 / 19 x 0.16 | 0.75 / 0.8 | 0.15 | 1.1 / 1.15 | 0.2 | 59.4 |
| 20 | 7 x 0.32 / 19 x 0.19 | 0.96 / 0.95 | 0.15 | 1.3 | 0.2 | 36.7 |
| 18 | 7 x 0.40 / 19 x 0.23 | 1.20 / 1.15 | 0.15 | 1.5 | 0.2 | 23.2 |
| 16 | 7 x 0.50 / 19 x 0.30 | 1.5 | 0.20 | 1.9 | 0.2 | 14.6 |
| 14 | 19 x 0.37 | 1.85 | 0.20 | 2.3 | 0.2 | 8.96 |
| 12 | 19 x 0.47 | 2.35 | 0.25 | 2.9 | 0.2 | 5.64 |
| 10 | 37 x 0.43 | 3.02 | 0.25 | 3.55 | 0.2 | 3.546 |
Professional Industry Features
-
Polyester Fiber Braiding: The specialized braiding layer provides significantly enhanced mechanical protection compared to standard single-layer wires. It offers superior resistance to abrasion, cutting, and external impact, making it ideal for high-density routing in complex appliances.
-
ETFE Primary Insulation: Ethylene Tetrafluoroethylene (ETFE) insulation combines excellent thermal stability with high dielectric strength. It remains mechanically stable and chemically inert under continuous exposure to temperatures up to +150°C (+302°F).
-
Thermal Endurance: Engineered to maintain physical integrity across a wide thermal spectrum, from sub-zero environments at -60°C (-76°F) to constant operational heat.
-
Corrosion & Chemical Resistance: Fully resistant to most industrial chemicals, acids, alkalis, and moisture. The combination of ETFE and Polyester braiding ensures a long service life even in demanding environmental conditions.
-
Safety & Compliance: Rated for 600V AC applications and compliant with rigorous flame retardancy standards, ensuring maximum safety for internal electronic circuitry.
