Product Overview
| Feature |
Specification |
| Product Series |
JSHF (Unshielded) / JSHFP (Shielded) |
| Application Depth |
300m (Type 30 / 3.0 MPa) or 450m (Type 45 / 4.5 MPa) |
| Rated Voltage |
600V AC |
| Temperature Range |
Long-term operation at +85°C (+185°F) |
| Minimum Environment Temp |
-20°C (-4°F) [Low-temperature bending test] |
| Key Features |
Radial and longitudinal watertight integrity, seawater corrosion resistance, high tensile strength, and extreme pressure stability. |
| Applications |
Power, control, and signal transmission for submarines, ROVs/AUVs, underwater sensors, and offshore platforms. |
Comprehensive Configuration Matrix
Our JSHF series covers over 100+ configurations including multi-core twisted, EMI shielding, and various depth-rated protective jackets. If your specific requirement is not listed in the standard table, please contact us for custom configuration.
| Configuration Category |
Available Options |
| Core Count |
1 to 61 cores |
| Cross-section Range |
0.5 mm2 to 10 mm2 |
| Shielding |
Unshielded (JSHF), Shielded with metal braid (JSHFP) |
| Watertight Class |
30 (300 meters), 45 (450 meters) |
| Conductor Type |
Flexible stranded (Type R) |
| Conductor Material |
Bare Copper (BC) or Tinned Copper (TC) |
| Standard Compliance |
GJB 774-1989, GJB 1916-1994, IEC 60092-350, MIL-DTL-24643C |
Conductor Resistance & Baseline Data
Maximum DC Resistance at 20°C (68°F)
| Cross-section (mm2) |
Stranding (n/mm) |
Max Resistance [Bare Copper] (Ohm/km) |
Max Resistance [Tinned Copper] (Ohm/km) |
| 1.0 |
7 / 0.43 |
18.1 |
18.2 |
| 1.5 |
7 / 0.52 |
12.1 |
12.2 |
| 2.5 |
7 / 0.68 |
7.41 |
7.56 |
| 4.0 |
7 / 0.85 |
4.62 |
4.70 |
| 6.0 |
7 / 1.04 |
3.08 |
3.11 |
| 10.0 |
7 / 1.35 |
1.83 |
1.84 |
Electrical & Mechanical Performance
| Parameter |
Performance Index |
| Voltage Test |
2.5 kV / 5 min (No breakdown) |
| Insulation Resistance |
>= 150 MOhm-km |
| Insulation Tensile Strength |
>= 4.83 MPa |
| Jacket Tensile Strength |
>= 10.0 MPa |
| Elongation at Break |
>= 250 percent |
| Low-Temp Bending |
-20°C (-4°F) / 2h (No cracking) |
| Flame Retardancy |
Compliant with GB/T18380-2008 standards |
Bending Radius Standards
| Cable Type |
Outside Diameter (D) |
Minimum Bend Radius |
| Shielded (JSHFP) |
Any |
6 x D |
| Unshielded (JSHF) |
D <= 25 mm |
4 x D |
| Unshielded (JSHF) |
D > 25 mm |
6 x D |

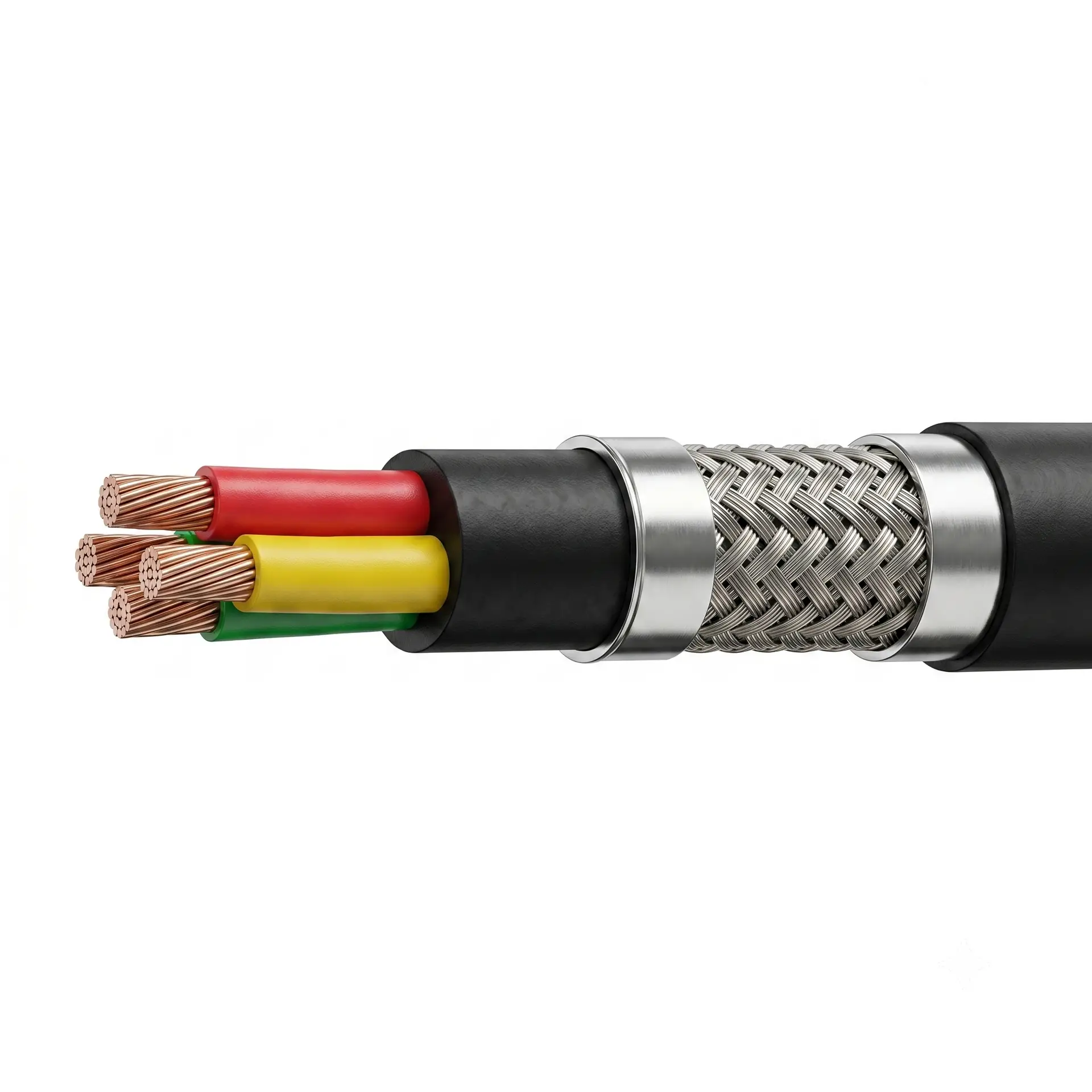

Construction Layers (Typical)
-
Flexible Conductor: High-strand bare or tinned copper.
-
Rubber Insulation: Specialized deep-sea grade rubber for high-pressure stability.
-
Internal Fillers: Watertight blocking compounds to prevent water ingress.
-
Shielding (Optional): Tinned copper braid for EMI/RFI protection.
-
Watertight Jacket: High-strength, seawater-resistant synthetic rubber.
