Product Overview
| Feature | Specification |

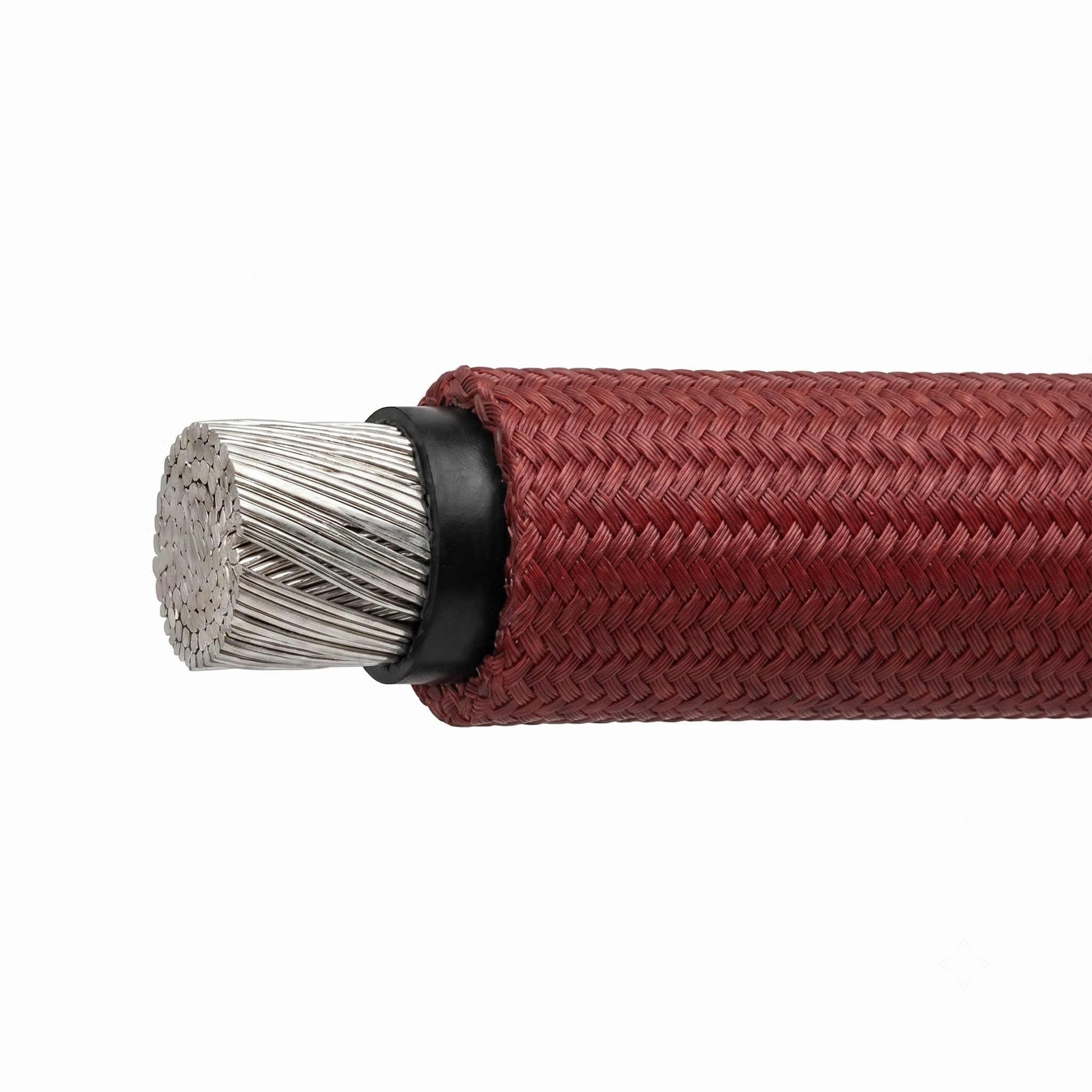

| Product Model | JGP Series (Braided Flexible Motor Lead Wire) |
| Insulation Material | Silicone Rubber (High Dielectric Grade) |
| Protective Covering | Fiber Braiding (Heavy-duty Mechanical Protection) |
| Rated Voltage | 1140V, 6000V (6KV), 10000V (10KV), 13800V (13.8KV) |
| Temperature Range | -60°C to +180°C (-76°F to +356°F) |
| Conductor Type | Flexible Stranded Bare Copper or Tinned Copper |
| Applications | High-voltage flexible lead-out connections for motor windings and large-scale electrical apparatus requiring extra mechanical protection. |
Technical Parameter Table
| Voltage Class | Nominal Cross-section (mm2) | Conductor Construction (Number x mm) | Stranded Conductor Diameter (mm) | Insulation Thickness (mm) | Braiding Thickness (mm) | Finished Outside Diameter (mm) | Maximum Resistance @ 20°C (68°F) (Ohm/km) [Bare Copper / Tinned Copper] | Minimum Insulation Resistance @ 20°C (68°F) (Megaohm/km) |
| 1140V | 16 | 126 / 0.40 | 5.8 | 1.5 | 0.3 | 9.3 +/- 0.5 | 1.210 / 1.240 | 460 |
| 25 | 196 / 0.40 | 7.3 | 1.8 | 0.3 | 11.3 +/- 0.5 | 0.780 / 0.795 | 380 | |
| 35 | 276 / 0.40 | 8.6 | 2.0 | 0.3 | 13.3 +/- 0.5 | 0.554 / 0.565 | 330 | |
| 50 | 396 / 0.40 | 10.7 | 2.0 | 0.3 | 15.2 +/- 0.5 | 0.386 / 0.393 | 290 | |
| 70 | 557 / 0.40 | 12.4 | 2.2 | 0.3 | 17.3 +/- 0.5 | 0.272 / 0.277 | 250 | |
| 95 | 756 / 0.40 | 14.5 | 2.2 | 0.3 | 19.5 +/- 0.5 | 0.206 / 0.210 | 230 | |
| 120 | 950 / 0.40 | 16.0 | 2.2 | 0.3 | 20.9 +/- 0.5 | 0.161 / 0.164 | 210 | |
| 6000V (6KV) | 16 | 126 / 0.40 | 5.8 | 3.8 | 0.3 | 14.0 +/- 0.5 | 1.210 / 1.240 | 520 |
| 25 | 196 / 0.40 | 7.3 | 4.0 | 0.3 | 15.8 +/- 0.5 | 0.780 / 0.795 | 430 | |
| 35 | 276 / 0.40 | 8.6 | 4.0 | 0.3 | 17.1 +/- 0.5 | 0.554 / 0.565 | 380 | |
| 50 | 396 / 0.40 | 10.7 | 4.2 | 0.3 | 19.6 +/- 0.5 | 0.386 / 0.393 | 330 | |
| 70 | 557 / 0.40 | 12.4 | 4.2 | 0.3 | 21.3 +/- 0.5 | 0.272 / 0.277 | 280 | |
| 95 | 756 / 0.40 | 14.5 | 4.4 | 0.3 | 23.8 +/- 0.5 | 0.206 / 0.210 | 260 | |
| 120 | 950 / 0.40 | 16.0 | 4.4 | 0.3 | 25.3 +/- 0.5 | 0.161 / 0.164 | 240 | |
| 10000V (10KV) | 16 | 126 / 0.40 | 5.8 | 4.4 | 0.3 | 15.1 +/- 0.5 | 1.210 / 1.240 | 520 |
| 25 | 196 / 0.40 | 7.3 | 4.6 | 0.3 | 17.0 +/- 0.5 | 0.780 / 0.795 | 430 | |
| 35 | 276 / 0.40 | 8.6 | 4.8 | 0.3 | 18.7 +/- 0.5 | 0.554 / 0.565 | 380 | |
| 50 | 396 / 0.40 | 10.7 | 4.8 | 0.3 | 20.8 +/- 0.5 | 0.386 / 0.393 | 330 | |
| 70 | 557 / 0.40 | 12.4 | 5.0 | 0.3 | 22.9 +/- 0.5 | 0.272 / 0.277 | 280 | |
| 95 | 756 / 0.40 | 14.5 | 5.0 | 0.3 | 25.0 +/- 0.5 | 0.206 / 0.210 | 260 | |
| 120 | 950 / 0.40 | 16.0 | 5.0 | 0.3 | 26.5 +/- 0.5 | 0.161 / 0.164 | 240 | |
| 13800V (13.8KV) | 16 | 126 / 0.40 | 5.8 | 6.5 | 0.3 | 19.3 +/- 0.5 | 1.210 / 1.240 | 520 |
| 25 | 196 / 0.40 | 7.3 | 6.5 | 0.3 | 20.8 +/- 0.5 | 0.780 / 0.795 | 430 | |
| 35 | 276 / 0.40 | 8.6 | 6.5 | 0.3 | 22.1 +/- 0.5 | 0.554 / 0.565 | 380 | |
| 50 | 396 / 0.40 | 10.7 | 6.5 | 0.3 | 24.2 +/- 0.5 | 0.386 / 0.393 | 330 | |
| 70 | 557 / 0.40 | 12.4 | 6.5 | 0.3 | 25.9 +/- 0.5 | 0.272 / 0.277 | 280 | |
| 95 | 756 / 0.40 | 14.5 | 6.5 | 0.3 | 28.0 +/- 0.5 | 0.206 / 0.210 | 260 | |
| 120 | 950 / 0.40 | 16.0 | 6.5 | 0.3 | 30.0 +/- 0.5 | 0.161 / 0.164 | 240 |
Professional Performance Features
-
Enhanced Mechanical Reinforcement: The integrated fiber braiding layer provides a high level of resistance against external abrasion, impact, and cutting. This ensures the integrity of the inner silicone insulation during rigorous installation processes in heavy industrial motors.
-
Superior Thermal Stability: Specifically engineered to operate reliably across an extreme thermal spectrum, from sub-zero environments at -60 degrees Celsius (-76 degrees Fahrenheit) to high-heat motor operating conditions up to +180 degrees Celsius (+356 degrees Fahrenheit).
-
High Dielectric Strength: The multi-voltage grade silicone insulation is formulated to prevent dielectric breakdown and electrical leakage, offering a robust safety factor for critical high-tension leads up to 13.8KV.
-
Premium Conductor Options: Available with Bare Copper or Tinned Copper conductors. Tinned copper provides an additional protective barrier against oxidation and environmental corrosion, ensuring long-term connectivity in high-humidity zones.
-
Optimized Flexibility: Despite the heavy-duty protection, the combination of high-strand count conductors and specialized silicone allows for a superior bend radius, facilitating easier routing through compact terminal boxes and motor enclosures.
