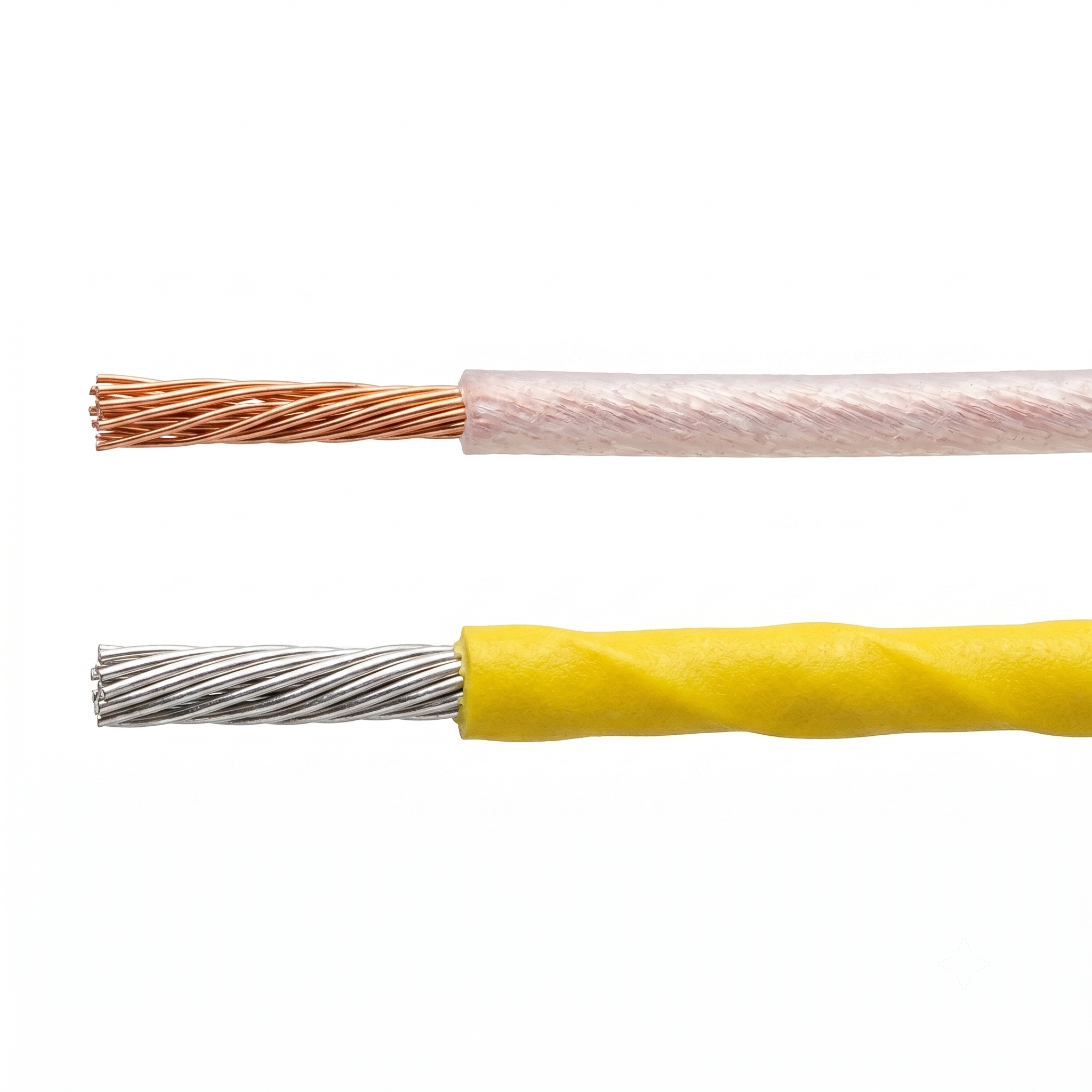

Product Overview
| Feature |
Specification |
| Product Models |
AF-200 (FEP Insulated), AF-250 (PFA Insulated) |
| Insulation Material |
FEP (for AF-200) / PFA (for AF-250) |
| Rated Voltage |
300/500V |
| Temperature Range |
-60°C to +200°C (-76°F to +392°F) [Tinned Copper] |
|
-60°C to +250°C (-76°F to +482°F) [Silver-plated Copper] |
| Conductor Material |
Tinned Copper or Silver-plated Copper Stranding |
| Available Colors |
White, Blue, Red, Black, Brown, Yellow, Green, Transparent, Yellow/Green |
| Applications |
Electronics: Compensation leads, low-temperature leads, heating wires. Appliances: Air conditioning units, microwaves, rice cookers, heaters, ovens, lighting systems. Specialized: Aerospace, aviation, defense, marine, and telecommunications. |
Technical Parameter Table
| Nominal Cross-section (mm2) |
Conductor Stranding (Number/mm) |
Conductor Diameter (mm) |
Insulation Wall Thickness (Nominal / Minimum) (mm) |
Finished Outside Diameter (mm) |
Max DC Resistance @ 20°C (68°F) (Ohm/km) [Silver-plated / Tinned Copper] |
| 0.12 |
7 / 0.15 |
0.45 +/- 0.02 |
0.25 / 0.20 |
0.95 +/- 0.08 |
156 / 168 |
| 0.14 |
19 / 0.10 |
0.48 +/- 0.02 |
0.25 / 0.20 |
0.98 +/- 0.08 |
128 / 138 |
| 0.20 |
19 / 0.12 |
0.58 +/- 0.02 |
0.25 / 0.20 |
1.08 +/- 0.10 |
83.5 / 90.4 |
| 0.35 |
19 / 0.16 |
0.78 +/- 0.02 |
0.25 / 0.20 |
1.28 +/- 0.10 |
49.5 / 50.8 |
| 0.50 |
19 / 0.18 |
0.90 +/- 0.02 |
0.25 / 0.20 |
1.40 +/- 0.10 |
37.1 / 38.8 |
| 0.75 |
19 / 0.23 |
1.12 +/- 0.03 |
0.25 / 0.20 |
1.65 +/- 0.10 |
22.7 / 24.6 |
| 1.0 |
19 / 0.26 |
1.26 +/- 0.03 |
0.25 / 0.20 |
1.75 +/- 0.10 |
19.0 / 20.0 |
| 1.5 |
19 / 0.32 |
1.56 +/- 0.03 |
0.35 / 0.25 |
2.26 +/- 0.15 |
11.7 / 12.7 |
| 2.0 |
19 / 0.37 |
1.80 +/- 0.03 |
0.35 / 0.25 |
2.50 +/- 0.15 |
9.28 / 10.0 |
| 2.5 |
19 / 0.41 |
2.05 +/- 0.05 |
0.35 / 0.25 |
2.75 +/- 0.20 |
7.25 / 8.01 |
| 3.0 |
37 / 0.32 |
2.20 +/- 0.05 |
0.35 / 0.25 |
3.00 +/- 0.20 |
6.23 / 6.53 |
| 4.0 |
37 / 0.37 |
2.55 +/- 0.05 |
0.45 / 0.35 |
3.45 +/- 0.20 |
4.51 / 4.88 |
| 6.0 |
37 / 0.41 |
2.85 +/- 0.05 |
0.45 / 0.35 |
3.75 +/- 0.20 |
3.67 / 3.98 |
| 5.0 |
37 / 0.45 |
3.15 +/- 0.05 |
0.45 / 0.35 |
4.05 +/- 0.20 |
3.05 / 3.30 |
Note: The 5.0 mm2 specification follows the 6.0 mm2 entry as per standard manufacturing documentation sequence.
Professional Industry Features
-
High-Performance Insulation: FEP and PFA offer exceptional dielectric properties and are chemically inert to almost all industrial acids, alkalis, and solvents. PFA is specifically chosen for applications requiring the highest level of thermal endurance.
-
Conductor Options: Silver-plated Copper is recommended for extreme environments up to +250°C (+482°F) due to its superior oxidation resistance, while Tinned Copper provides an excellent cost-effective solution for applications up to +200°C (+392°F).
-
Thermal Integrity: Designed to maintain mechanical flexibility and electrical performance across a wide thermal spectrum, from deep cryogenic environments at -60°C (-76°F) to high-heat industrial zones.
-
Flame Retardancy: Naturally non-flammable insulation material that complies with rigorous vertical and horizontal flame tests, ensuring maximum safety for high-voltage internal equipment wiring.
-
Space-Saving Profile: The thin-wall insulation design allows for a reduced outside diameter, facilitating easier routing in high-density electronics and compact household appliances.
