General Product Overview
| Feature | Specification |
| Product Model | 680-086/50 |
| Part Number | YZ680086/50 |
| Insulation Material | Polytetrafluoroethylene (PTFE) – Natural |
| Outer Conductor Material | Seamless Annealed Bare Copper Tube |
| Operating Temperature Range | -55 degrees Celsius to +125 degrees Celsius (-67 degrees Fahrenheit to +257 degrees Fahrenheit) |
| Minimum Bending Radius (Static) | 7.63 Millimeters |
| Best Preservation Period | Two Months |
| Applications | High-reliability internal connections for microwave systems, satellite communication payloads, base station antennas, and precision radio frequency testing environments. |

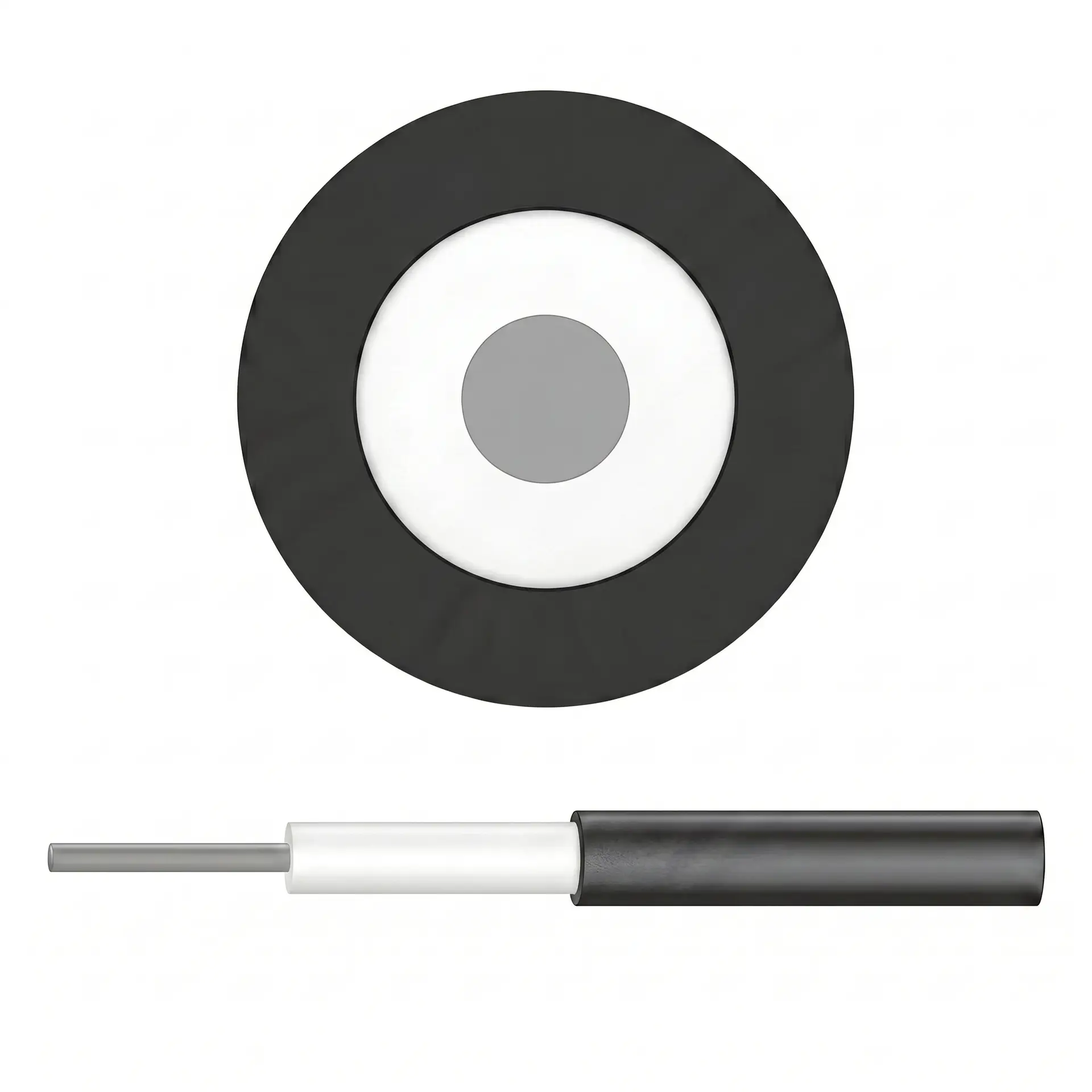

Precision Construction Details
| Layer Component | Material Specification | Construction Design (n/mm) | Diameter (mm) |
| 1. Inner Conductor | Solid Silver-plated Copper Clad Steel Wire | 1 x 0.52 | 0.52 plus or minus 0.01 |
| 2. Insulation Layer | Polytetrafluoroethylene (PTFE) | Not Applicable | 1.68 plus or minus 0.05 |
| 3. Outer Conductor | Seamless Annealed Bare Copper Tube | Not Applicable | 2.20 plus or minus 0.05 |
Electrical Performance Characteristics
| Performance Parameter | Technical Value |
| Characteristic Impedance (at 1ns) | 50 Ohm |
| Capacitance | 95 picofarads per meter |
| Propagation Velocity | High Velocity (Typical for PTFE dielectrics) |
| Voltage Standing Wave Ratio (0 to 10 Gigahertz) | Less than or equal to 1.15 |
Signal Attenuation and Power Reference Table (DC to 20 GHz)
| Frequency (Gigahertz) | Maximum Attenuation (Decibels per meter) | Average Power Handling (Watts) |
| 0.5 GHz | Less than or equal to 0.45 decibels per meter | 232.0 Watts |
| 1.0 GHz | Less than or equal to 0.64 decibels per meter | 162.4 Watts |
| 5.0 GHz | Less than or equal to 1.51 decibels per meter | 69.8 Watts |
| 10.0 GHz | Less than or equal to 2.22 decibels per meter | 47.9 Watts |
| 20.0 GHz | Less than or equal to 3.29 decibels per meter | 32.6 Watts |
Professional Industry Advantages
-
Copper Clad Steel Strength: By utilizing a high-strength Silver-plated Copper Clad Steel (SPCCS) inner conductor, this cable offers superior tensile strength and durability compared to soft copper alternatives, ensuring long-term phase stability in high-vibration aerospace or military environments.
-
100 Percent Shielding Effectiveness: The seamless bare copper tube outer conductor provides an absolute electromagnetic seal. This ensures zero signal leakage and total immunity to external interference, which is a critical requirement for high-density microwave integrated circuits.
-
Ultra-Low Loss Performance: Specifically optimized for the 0 to 20 Gigahertz frequency spectrum. Its high-purity PTFE insulation maintains an exceptionally low dielectric constant, resulting in minimal signal attenuation even at higher microwave bands.
-
Superior Power Handling Capability: Designed to carry high power loads (up to 162 Watts at 1 GHz) within a compact 2.20 mm profile, making it a powerful solution for transmitter output stages and high-gain antenna systems.
-
Shape Retention & Mechanical Stability: The semi-rigid nature of the annealed copper tube allows the cable to be precision-bent into complex three-dimensional shapes during assembly. Once formed, it maintains its geometry, providing consistent electrical paths without the signal fluctuations common in flexible cables.
