General Product Overview
| Feature |
Specification |
| Product Type |
4-Core Hybrid Composite (3 Shielded Coax + 1 Signal Lead) |
| Primary Standard |
Nano-Scale Micro-Coaxial Hybrid Standards |
| Insulation Material |
Perfluoroalkoxy (PFA) |
| Outer Jacket Material |
Perfluoroalkoxy (PFA) – Black Color |
| Dielectric Strength |
500 Volts Alternating Current (AC) per minute |
| Operating Temperature Range |
-40 degrees Celsius to +80 degrees Celsius (-40 degrees Fahrenheit to +176 degrees Fahrenheit) |
| Finished Outside Diameter |
0.68 plus or minus 0.02 Millimeters |
| Optimal Preservation Period |
Two Months |

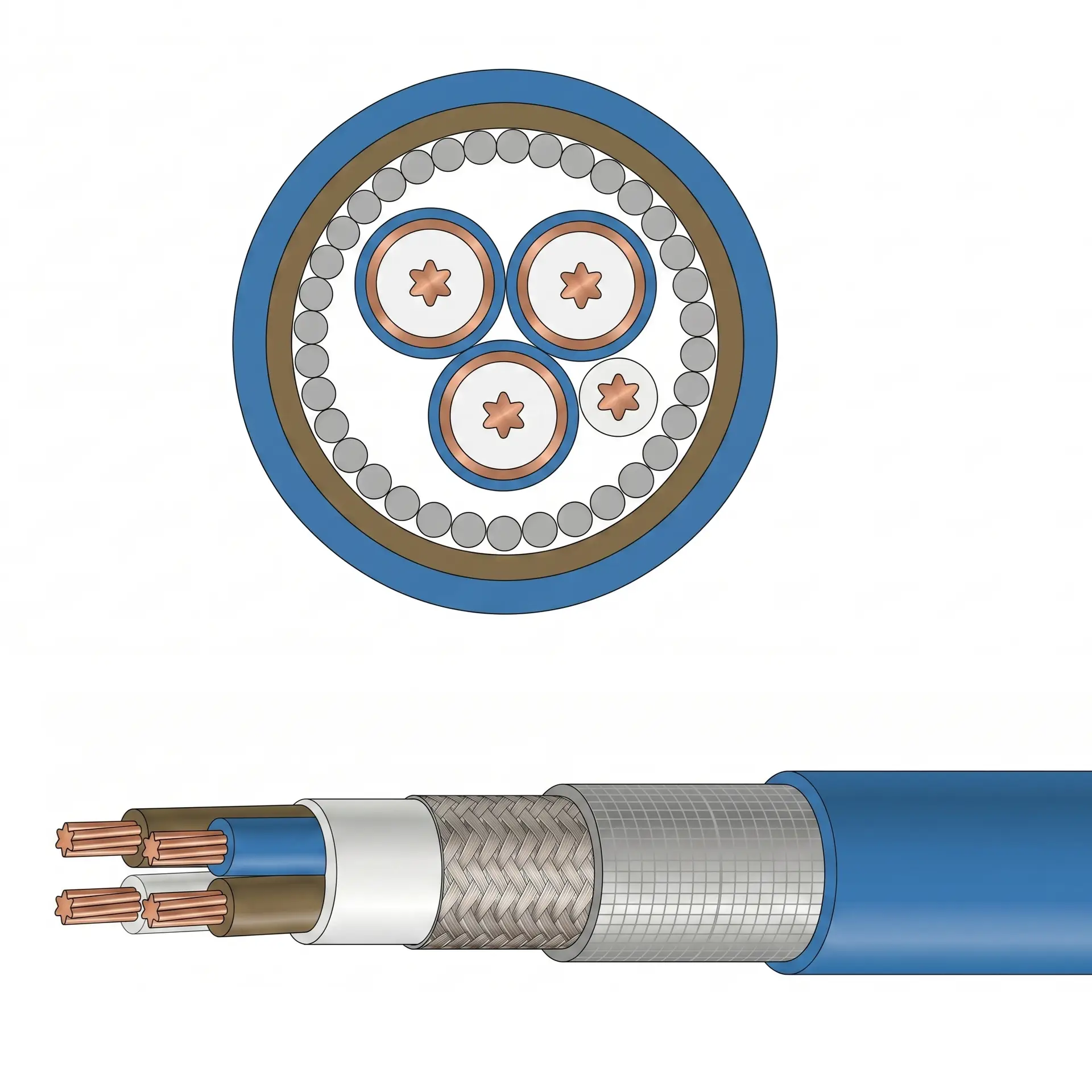

Multi-Component Construction Details
Component A: Shielded High-Frequency Sub-Cables (Quantity: 3)
Colors: Black, Green, Blue
| Layer Component |
Material Specification |
Construction Design (n/mm) |
Diameter (mm) |
| A-1. Inner Conductor |
Silver-plated Copper Alloy (42 AWG) |
7 x 0.025 |
0.075 plus or minus 0.01 |
| A-2. Primary Insulation |
Perfluoroalkoxy (PFA) |
Nominal Thickness 0.06 |
0.195 plus or minus 0.02 |
| A-3. Shielding Layer |
Silver-plated Copper Alloy |
Spiral Wrapped (0.02mm) |
0.235 plus or minus 0.02 |
| A-4. Sub-Jacket |
Perfluoroalkoxy (PFA) |
Nominal Thickness 0.02 |
0.275 plus or minus 0.02 |
Component B: Single Signal Lead (Quantity: 1)
Color: Yellow
| Layer Component |
Material Specification |
Construction Design (n/mm) |
Diameter (mm) |
| B-1. Inner Conductor |
Silver-plated Copper Alloy (42 AWG) |
7 x 0.025 |
0.075 plus or minus 0.01 |
| B-2. Primary Insulation |
Perfluoroalkoxy (PFA) |
Nominal Thickness 0.06 |
0.195 plus or minus 0.02 |
Final Assembly Structure
| Layer Component |
Material Specification |
Nominal Thickness (mm) |
Final Diameter (mm) |
| Overall Outer Jacket |
Perfluoroalkoxy (PFA) – Black |
0.03 |
0.68 plus or minus 0.02 |
Electrical Performance Characteristics
| Performance Parameter |
Technical Value |
| Characteristic Impedance (at 1ns) |
50 plus or minus 5 Ohm |
| Typical Capacitance |
110 picofarads per meter |
| Center Conductor Resistance (@ 20°C) |
Maximum 7000 Ohm per kilometer |
| Insulation Resistance (@ 20°C) |
Minimum 1000 Megaohm-kilometer |
| Dielectric Strength |
500 Volts (AC) per minute |
Professional Industry Advantages
-
Advanced Hybrid Integration: This cable integrates three independent shielded 50 Ohm high-frequency units and one signal lead into a single 0.68 mm profile. This allows for simultaneous high-definition video data, feedback signals, and power/control delivery in ultra-slender surgical catheters or industrial probes.
-
Nano-Scale Precision Conductor: Utilizing a 7-strand silver-plated copper alloy (42 AWG) ensures both high-fidelity signal transmission and the mechanical strength required to withstand repetitive bending in articulated robotic systems.
-
Premium PFA Dielectric Matrix: All layers, from primary insulation to the outer jacket, utilize high-grade Perfluoroalkoxy (PFA). This ensures an exceptionally low dielectric constant for low-loss transmission and absolute resistance to chemicals and moisture.
-
Superior EMI Isolation: Each high-frequency sub-cable features its own independent silver-plated alloy spiral shield. This prevents internal crosstalk between cores and provides a 100 percent barrier against external electromagnetic interference, essential for precision medical diagnostics.
-
High-Density Packaging: With a total diameter of only 0.68 mm, this composite cable enables 4-channel functionality in spaces that typically only accommodate a single standard wire, facilitating the next generation of miniaturized medical and aerospace instrumentation.
